MRCOOL 5 Ton TruInverter Heat Pump System with Air Handler and Thermostat

MRCOOL 5 Ton TruInverter Heat Pump System with Air Handler and Thermostat

MRCOOL

MCSHV7M6021BB

840433622673

(No reviews yet) Write a Review
  • SEER2: 17
  • Cooling Capacity (BTU): 53,000
  • Heating Capacity (BTU): 53,000
  • Voltage Requirements: 208/230
$4,883.18
Adding to cart… The item has been added
Find Rebates Need an Install?

5 Ton TruInverter Heat Pump System with Air Handler and Thermostat. Includes the heat pump condenser, matching air handler, and thermostat.

Included Equipment

  • MCAESHV7T6021BA — 5 Ton 17 SEER2 TruInverter® Heat Pump Condenser
  • MCAEAMPVT60F21BA — 5 Ton TruInverter® Air Handler
  • Thermostat included with this bundle.

Condenser Specifications — MCAESHV7T6021BA

Series TruInverter
Model MCAESHV7T6021BA
GTIN 00840433617181
UPC 840433617181
Unit Type Split System Heat Pump
Equipment Type Condenser
SEER2 17
EER2 7.5
Cop 47 3.2
HSPF2-4 8.2
Tonnage 5
Cooling Capacity (BTU) 53,000
Heating Capacity (BTU) 53,000
Voltage (V) 208/230
Phase 1
Cycle (Hz) 60
Max Fuse Breaker (A) 60
Min Circuit Ampacity (A) 35
Color Gunmetal
Refrigerant Type R-454B
Refrigerant Volume (Oz) 141.09
Decibel Rating (Dba) 70
Inverter Yes
Min Ambient Cool (F) 5
Min Ambient Heat (F) -5
Max Lineset Length (Ft) 100
Liquid Line Size 3/8
Suction Line Size 7/8
Compressor Motor Type Variable Rotary
Condenser Fan Motor Type DC
Metering Device EEV
Energy Star Certified No
AHRI Certified Yes
Base Warranty 10 Year Parts, Lifetime Compressor
Base Parts Warranty 10 Year
Base Compressor Warranty Lifetime
Contains Electronics Yes
Contains Chemicals Yes
Contains Compressed Gas Yes
Proposition 65 Warning Yes
Net Depth (in) 29.125
Net Height (in) 33.19
Net Width (in) 29.125
Net Weight (lbs) 190
Gross Depth (in) 30.25
Gross Height (in) 39.5
Gross Width (in) 30.25
Gross Weight (lbs) 220

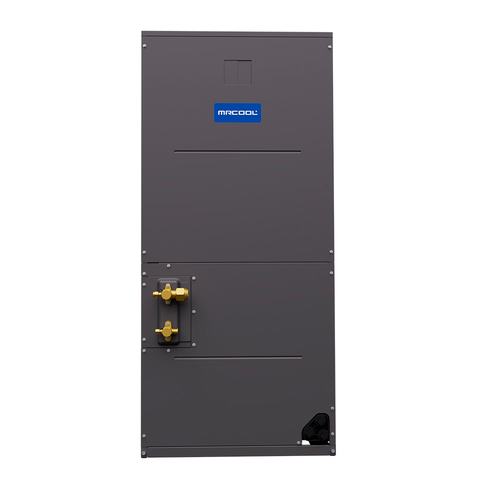

Air Handler Specifications — MCAEAMPVT60F21BA

Series TruInverter
Model MCAEAMPVT60F21BA
GTIN 00840433617228
UPC 840433617228
Unit Type Split System
Equipment Type Air Handler
CFM 1700
Tonnage 5
Voltage (V) 208/230
Phase 1
Cycle (Hz) 60
Max Fuse Breaker (A) 15
Min Circuit Ampacity (A) 7
Mount Type Multi-Position
Color Gunmetal
Refrigerant Type R-454B
Refrigerant Volume (Oz) 3.52
Decibel Rating (Dba) 62
Drain Connection Size 3/4
Max Lineset Length (Ft) 100
Liquid Line Size 3/8
Suction Line Size 7/8
Blower Motor Type DC
Blower Motor Hp 3/4
Blower Motor Speeds 5
Metering Device TXV
Auxiliary Heater Included No
Auxiliary Heater Available Yes
Auxiliary Heater Sizes 5kW, 10kW, 15kW, 20kW
Base Warranty 10 Year Parts
Base Parts Warranty 10 Year
Contains Electronics Yes
Contains Chemicals Yes
Contains Compressed Gas Yes
Proposition 65 Warning Yes
Net Depth (in) 21
Net Height (in) 56
Net Width (in) 24.5
Net Weight (lbs) 161
Gross Depth (in) 27
Gross Height (in) 62
Gross Width (in) 28.66
Gross Weight (lbs) 204

Specifications above identify the individual included components. Confirm installation requirements and approved system ratings for your application. Gallery photos show the included equipment components; the thermostat is included even when it is not pictured.
